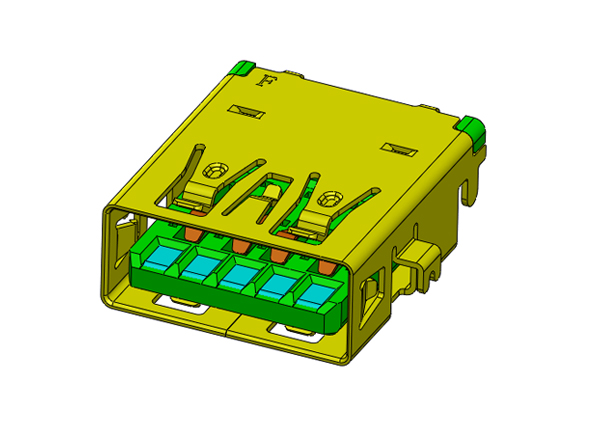

Type

Type‑A Female

Style

90° DIP On‑Board

Mounting

DIP

CH(mm)

4.13

DIM L×W×H(mm)

16.5×7.42×6.99

Flange

Yes / No

Solder Pin   Length(mm)

2.17

Bend Pin W(mm)

15.6

Straight Pin   Length(mm)

2.2

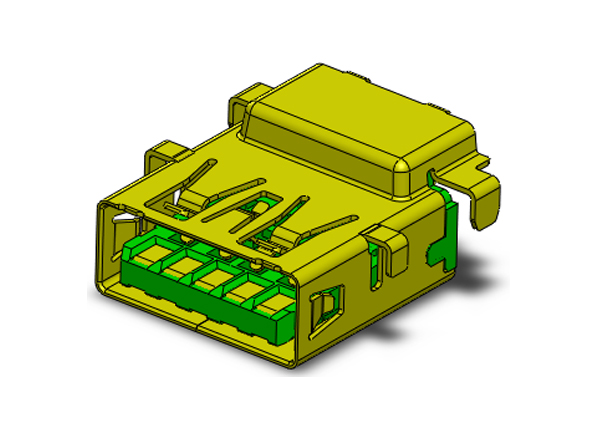

Type

Type‑A Female

Style

90° Reverse Sink‑in DIP

Mounting

DIP

Sink-in H

‑0.3 mm

DIM L×W×H

15.60×5.72×2.56 mm

Flange

No

Solder Pin Length

1.4 mm

Straight Pin Length

1.4mm

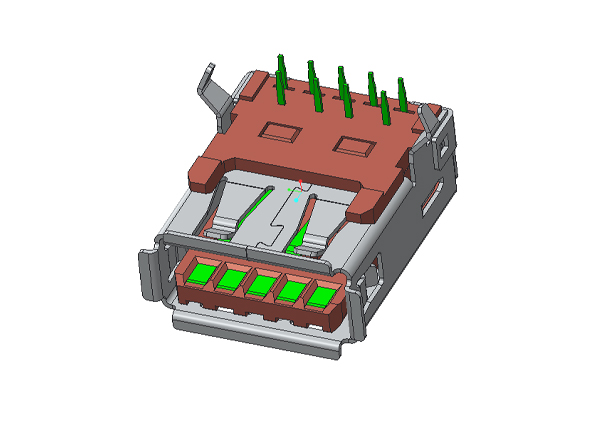

Type

Type‑A Female

Style

90° Reverse Sink‑in DIP

Mounting

DIP

Sink-in H

‑2.54 & ‑2.40 mm

DIM L×W×H

16.37×5.4×2.3 & 2.44 mm

Flange

No

Solder Pin Length

1.45 & 1.26 mm

Straight Pin Length

2.1 & 0.85 mm

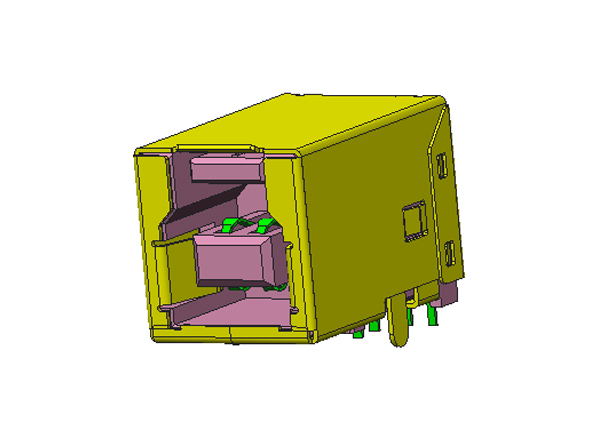

Type

Type‑B Female

Style

90° DIP

Mounting

DIP

H

12.4/12.6/12.9 mm

DIM L×W

18.30×12.51 mm

Solder Pin Length

2.1 mm

Bend Pin W

2.1 mm

Type

Type‑B Female

Style

90° DIP

Mounting

DIP

H

12.4/12.6/12.9 mm

DIM L×W

18.30×12.21 mm

Solder Pin Length

2.2/2.38/2.5/2.70 mm

Bend Pin W

14.4 mm

Type

Type‑A Female

Style

90° DIP Reverse Sink‑in

Mount Type

Flat Mouth

Layer

Short-Body

Sink-in H

-1.34

CH (Case Height)

7.2 mm

DIM (L×W×H)

12.5×5.4×1.36 mm

Flange

No

Solder Pin Length

1.35 mm

Straight Pin Length

1.35 mm

Type

Type‑A Female

Style

90° Side-Entry

Mounting

DIP

Layer

Long-Body

CH (Case Height)

7.2 mm

DIM (L×W×H)

19.40×13.1×13.75

Flange

Yes /No

Solder Pin Length

3.0 mm

Bend Pin W

7.0 mm

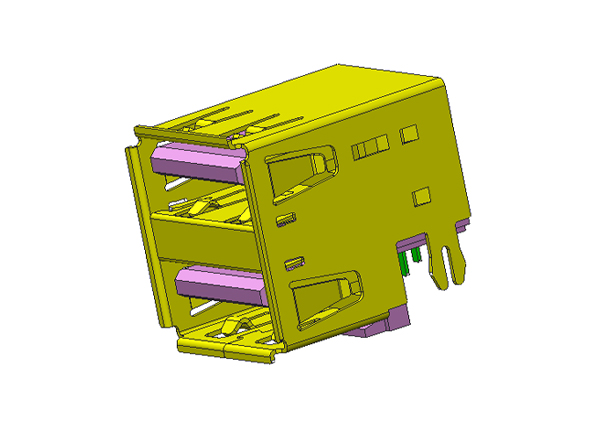

Type

Type‑A Female

Style

90°

Mounting

DIP

Layer

Dual‑Layer

CH (Case Height)

3.55 mm

DIM (L×W×H)

16.7×14.3×10.5 mm

Flange

Yes (With Flange)

PIN Length

2.5 mm

Stake‑in Lugs W

2.5 mm

Pin

4p

Case Height

1.0mm

DIP

SMT
