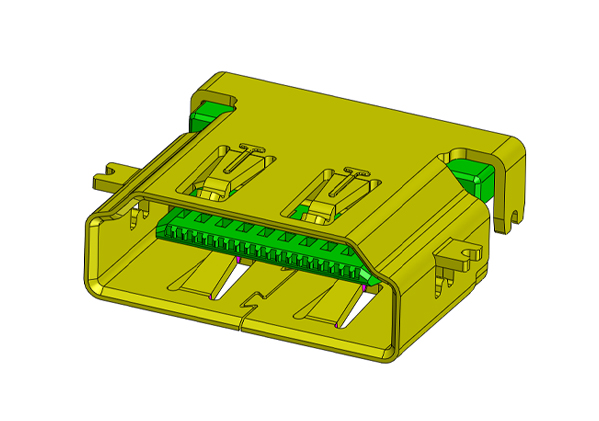

Product Type

DisplayPort Receptacle

Mounting Type

Sink‑board

Sink‑board Depth(CH)

0.78mm

Dimension(LWH)

10.3×5.06×1.9mm

Version

DisplayPort 2.1

On‑board Height

1.6mm / 1.9mm / 2.1mm

Product Type

DisplayPort Receptacle

Mounting Type

Sink‑board

Sink‑board Depth(CH)

0.95mm

Dimension(LWH)

13.35×5.56×1.83 mm

Version

DisplayPort 1.4

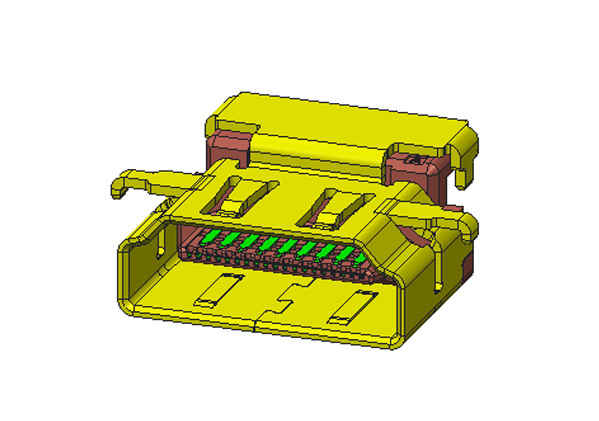

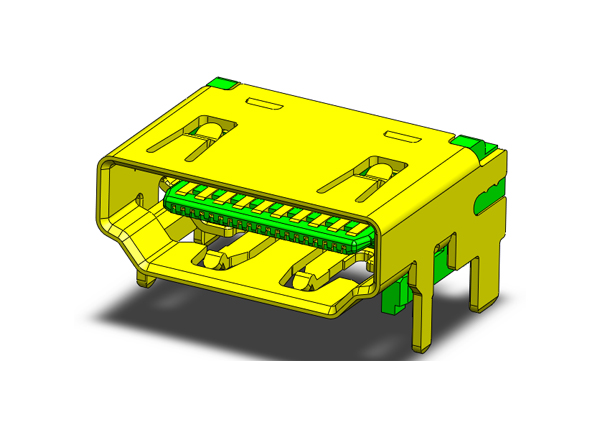

Product Type

HDMI AF Receptacle

Pin Number

19P

Mounting Type

SMT, 90°, On‑board (Short Insulator)

Board Height(CH)

3.4mm

Dimension(LWH)

12.14×5.55×6.17mm

Version

HDMI 1.4

Straight Foot Length

2.23mm

Product Type

HDMI AF Receptacle

Pin Number

19P

Mounting Type

DIP, Reverse Type

Sink‑board Depth(CH)

0.50mm

Dimension(LWH)

12.50×5.55×2.27 mm

Version

HDMI 1.4

Solder Foot Width

1.50mm

Straight Foot Width

1.50mm

Product Type

HDMI AF Receptacle

Pin Number

19P

Mounting Type

DIP, Reverse Sink‑board

Sink‑board Depth(CH)

‑2.25mm

Dimension(LWH)

13.65×5.55×1.95 mm

Version

HDMI 2.1

Solder Foot Width

0.80mm

Straight Foot Width

0.80mm

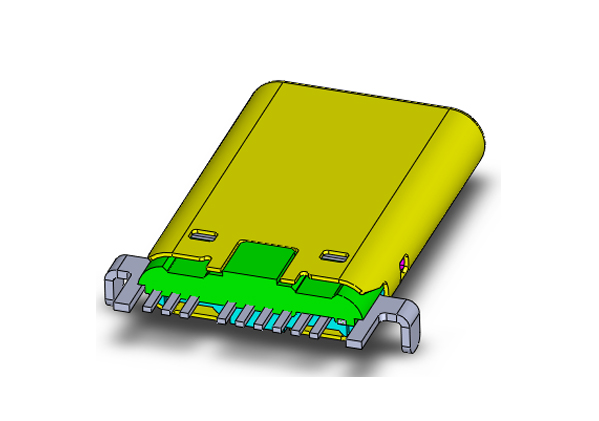

Product Type

Type‑C Plug

Pin

9P

Overall Height(H)

12.10mm

Dimension(LWH)

12.10×2.4×1.35mm

Housing Shell

Stamped / Formed

Solder Foot Type

SMT

Straight Foot Length

1.30mm

Product Type

Type‑C Female Connector

Pin Number

6P Single row

Mounting Type

SMT Receptacle, Sink‑board

Sink‑board Depth

‑0.80mm

Dimension(LWH)

6.5 × 3.14 × 2.34 mm

Product Type

Type‑C Female Connector

Pin

16P

Mounting Type

Vertical SMT

Mated Height

6.4mm / 5.6mm / 7.5mm

Multiple height options

Housing Foot Pitch

0.95mm

Shell foot

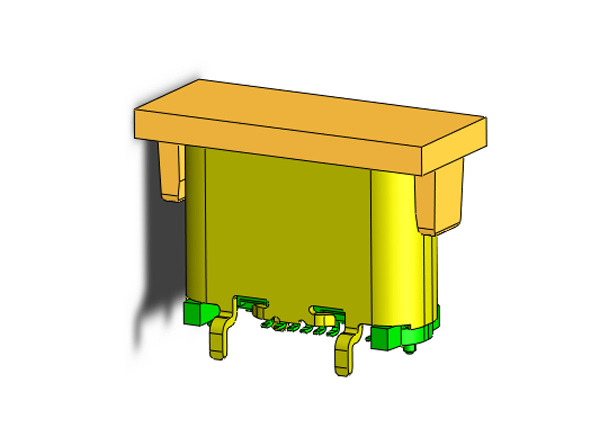

Product Type

Type-C Female Connector

Pin

16P

Mounting Type

Vertical SMT

Structure Type

Short Full Plastic Custom Version

Mated Height

6.43mm

Board Height (Raised)

5.91mm

Overall Length

8.0mm

Housing Pin Width

0.65mm

Product Type

Type-C Female Connector

Pin

16P

Mounting Type

Vertical SMT

Structure Type

Short Full Plastic Custom Version

Mated Height

6.43mm

Product Type

Type-C Female Connector

Pin

16P

Mounting Type

Vertical SMT

Structure Type

Short Full Plastic Custom Version

Mated Height

6.43mm

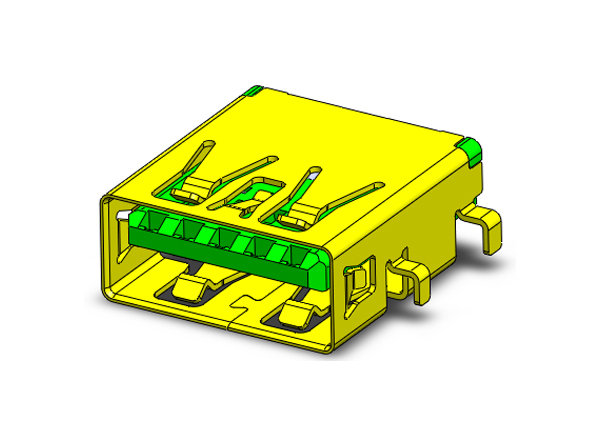

Type

Type‑A Female

Style

90° Forward Sink‑in   DIP

Mounting

DIP

CH (mm)

0.10 & 0.64

DIM L×W×H(mm)

13.9×5.72×2.96   & 3.5

Flange

Yes / No

Solder Pin   Length(mm)

1.8 & 1.6

Bend Pin W(mm)

1.8 & 1.5
